-Full HD 1920x1200
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), the pixel density of the F7 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.
-Precise Color to fuel your creative flow
Richer, Brighter, Most Colorful
-IPS Wider View Angle 160°
Enjoy consistent images from any perspective
-Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 22.95mm thickness 280g the F7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
-Multiple Installations
Standard Two 1/4"-20 Thread Socket
-New Generation Collapsable Sunshade
For easier viewing in bright environments. F7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.
-Flexible Battery System
The F7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
Specification:
Package Included:
Specification:
| Model | F7 |
| Screen Size | 7 icnh IPS |
| Resolution | 1920x1200 pixels |
| Dot pitch | 0.07875 (H) x 0.07875 (W) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1200:01:00 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Input | |
| 1 X HDMI | HDMI |
| Output | |
| 1 X HDMI | HDMI |
| Audio | |
| Audio Out | Stereo Headphone, Speaker |
| HDMI Input Support Format | 480i/576i/480p/576p |
| 1080i (60/59.94/50) | |
| 720p (60/59.94/50/30/29/25/24/23.98) | |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) | |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98) | |
| HDMI Output Support Format | 480i/576i/480p/576p |
| 1080i (60/59.94/50) | |
| 720p (60/59.94/50/30/29/25/24/23.98) | |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) | |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98) | |
| Input Voltage | DC7-24V |
| Power Consumption | ≤8W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Socket (top, bottom) |
| Battery Plate | F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
| Unit Size | 180Lx120Hx22.95D (mm) |
| Unit Weight | 280g/310g (With F970 Plate) |
| Advanced Features | * Brightness Histogram |
| * Embedded Audio | |
| * Peaking Focus Assist (has High Low level to adjust; Red, Yellow, Blue, White four color optional highlight over parts of the image in focus) |
|
| * False Colors | |
| * Zebra Exposure (0-100IRE adjustable) | |
| * Check Field (Red,Green,Blue,Mono) | |
| * Camera Mode | |
| * Scan Mode (Auto,Over Scan, Full Screen) | |
| * Zoom (Auto,4x,9x,16x) | |
| * Anamorphic Mode (1.3x,2.0x,2.0x mag) | |
| * Image Flip (H, V, H/V) | |
| * Image Freeze | |
| * Nine Grid (Zoom one of the images to realize the full screen) | |
| * Pixel-to-Pixel | |
| * Center Marker | |
| * Screen Marker (80%,85%,90%,93%,96%) | |
| * Marker Types (16:9,4:3,2.35:1,1.85:1) | |
| * Color Temperature Adjustment |
|

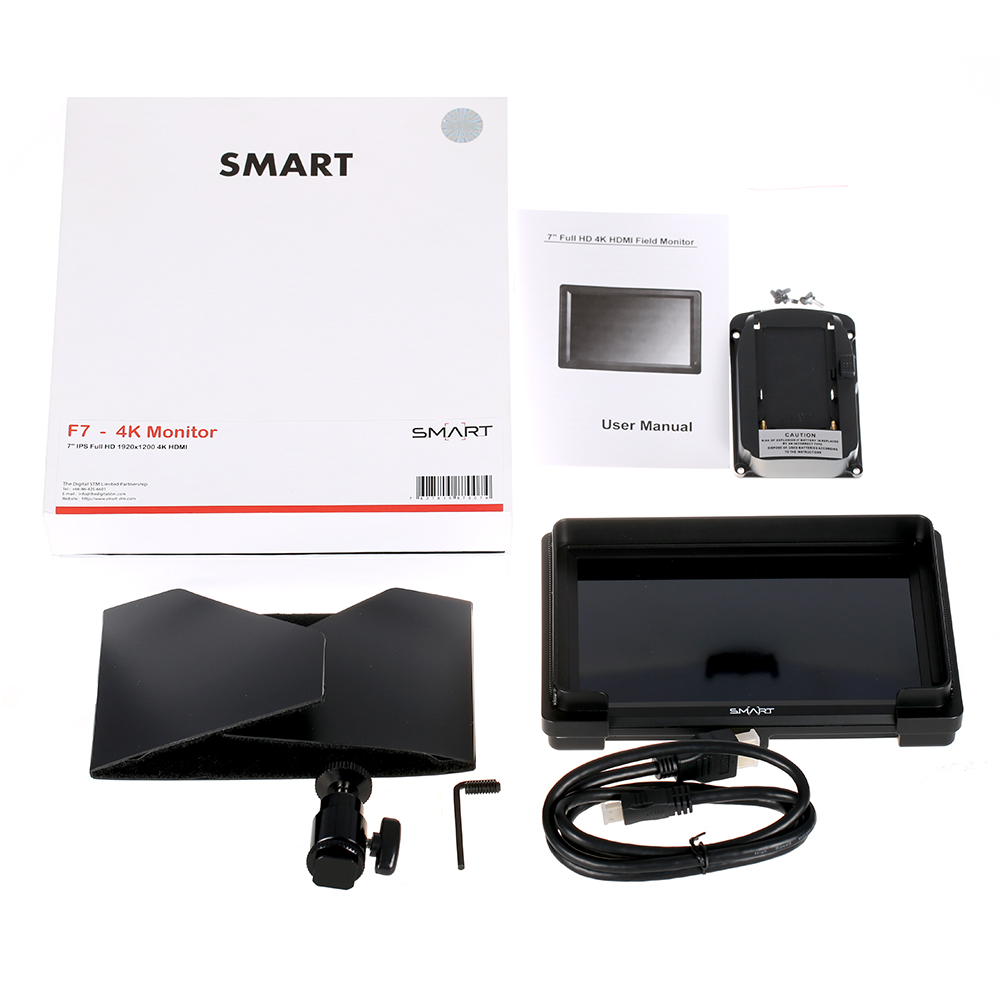

Package Included:
1 x F7Monitor
1 × Mini HDMI Cable
1 × Mini HDMI Cable
1 × Sunshade
1 × Hot Shoe Mount
1 × F970 Battey Plate
1 × Operation Manual
