Model: SP17
Introduction
Screen Size： 17″ 10bit IPS
Resolution： 3840×2160 pixels
Aspect ratio： 16:9
Brightness： 400cd/m2
Input:HDMI*4/3G-SDI*1//VGA/DVI
Output:HDMI*4/3G-SDI*1AV compositeAUDIO Audio R.L two-channel output

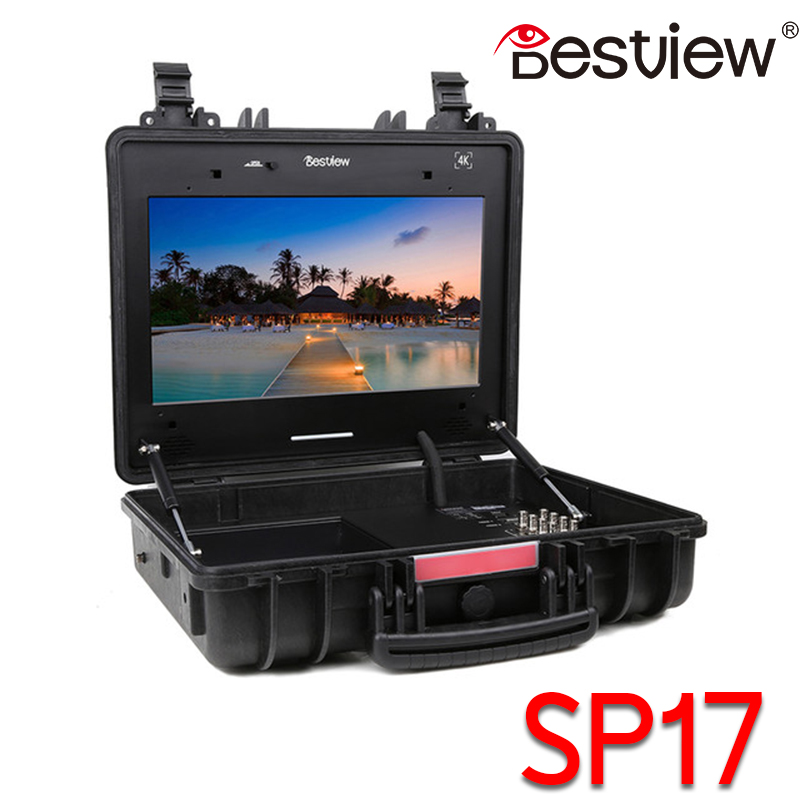

Bestview SP17 4K 4*HDMI In&Out portable monitor
The Bestview 4K UHD LED carry on broadcast monitor features a 17-inch screen with multiple viewing options, including built-in quad and multiview, supports 4*HDMI 2.0 input support 4K signal and up to 4K 60Hz(3840*2160 60Hz),3G-SDI*1 input and output Multi view (PIP&PBP function), as well as a high contrast display for the ultimate cinematic experience with professional color calibration, covered REC709. This monitor is ideal for ENG news crews, TV stations, production studios, and directors in live and post production applications.The UHD 3840×2160 resolution supports 4K signals with a 16:9 LED display and 178° wide viewing angles for consistent images from any perspective.
Features:
- 4K HDMI 17 Inchportable monitor use IPS 4K high resolution Wide viewing angle(Physical resolution:3840*2160)

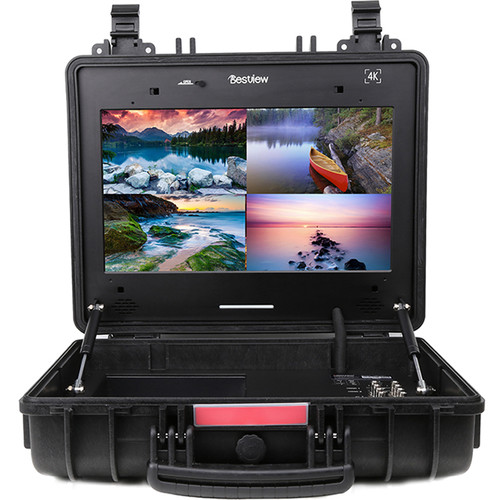

- Multi view (PIP&PBP function)
- 4*HDMI 2.0 input support 4K signal and up to 4K 60Hz(3840*2160 60Hz)
- Battery information display
- Gamma selection(1.8/2.0/2.2/2.4)
- 3G-SDI input and output
- Dual power supply system(V mount or gold mount)

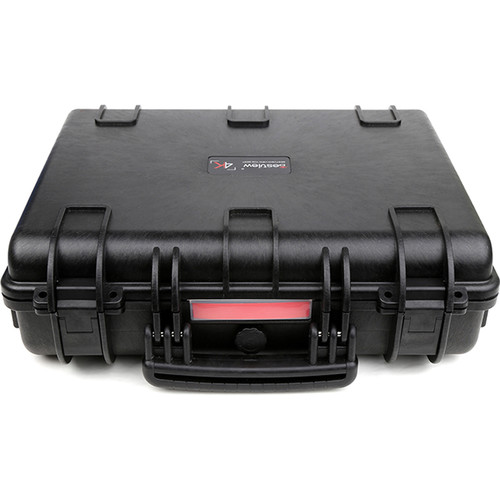

- Military grade case protect the monitor inside.

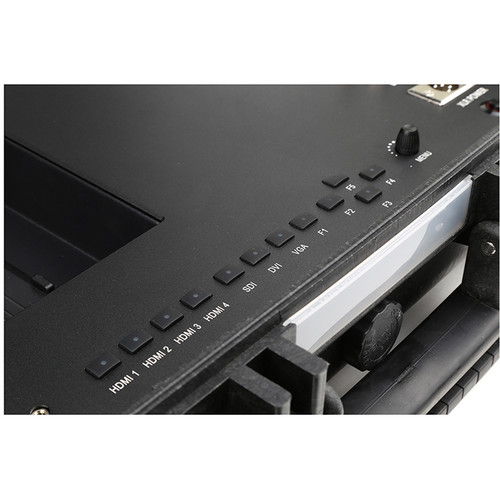

- 6 channel signal source switchable
- Professional color calibration, covered REC709.
- Add glass protect the panel
Professional software features:
Peaking filter,Check field,Center mark(five color),Safe area,Under scan,Ratio,Check Field(B/W/R/G/B),Up and down flip(U/D,R/L),Noise
Reduction；
Technical Parameters:
Model:SP17
Description:17 Inch 4K 4*HDMI portable monitor
Case color:Black
Display type:Ratio of 16: 9
Display area:382(W) ×214(H)mm
Resolution:3840*2160
Response time:10/15(TPY)(Tr/TD)
Display menu (OSD) / push-button control
Brightness:400CD/M²
Ratio:1000:1
View angel:L/R 178°(89°/89°)，U/D 178°(89°/89°)
LED Back light life: 50,000 hours

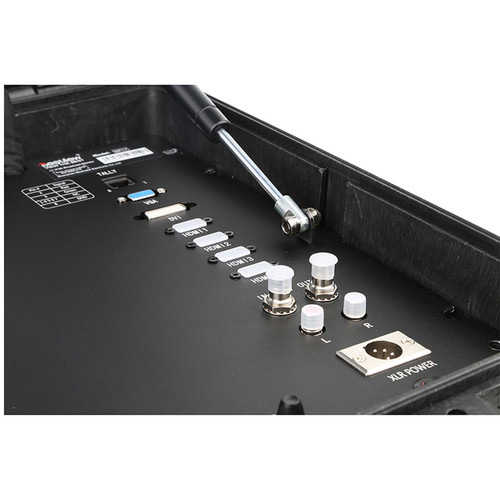

Input signal: HDMI/3G-SDI/VGA/DVI
Output:3G-SDI
AV composite
AUDIO Audio R.L two-channel output
| HDMI | 720*480i&720*480p @59.94, 60Hz720*576i & 720*576p @50Hz
1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080p @ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz 3840*2160p @ 24,25,30HZ 4096*2160P @ 24Hz
|
| 3G-SDI | 720*480i@59.94, 60Hz720*576i & 720*576p @50Hz
1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080p @ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz
|
| VGA/DVI | 720*480i&720*480p @59.94, 60Hz720*576i & 720*576p @50Hz
1280*720P@ 50, 59.94, 60Hz 1920*1080i @ 50, 59.94, 60Hz 1920*1080p @ 24, 25, 29.97, 30Hz 1920*1080p @23.93, 24, 25, 29.97,30,50,59.94,60Hz
|
| Composite | NTSC-M, NTSC-J, NTSC 4.43PAL B/G H I D, PAL M, PAL N
SECAM |
Power: AC Built: 110V-265V AC, 50-60 Hz / DC 12V 2A
Power: ≤26W TPY
Temperature range: -10 ℃ -60 ℃ Operating Storage: -20 ℃ -80 ℃
Relative humidity: not condense the state, Humidity 10% -90% Storage humidity 5% -90%
Warranty: One year warranty and lifetime free maintenance.
Certifications:FCC, CE, ROHS，KCC
Package:

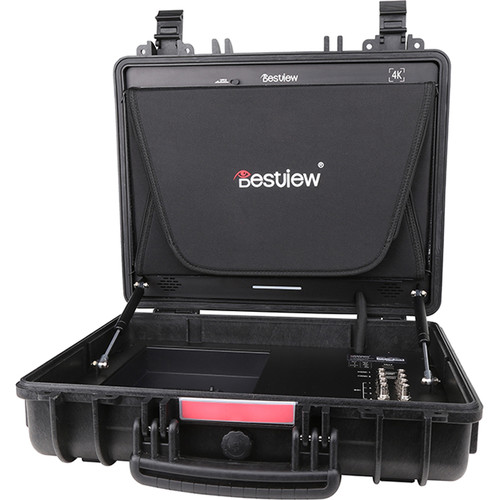

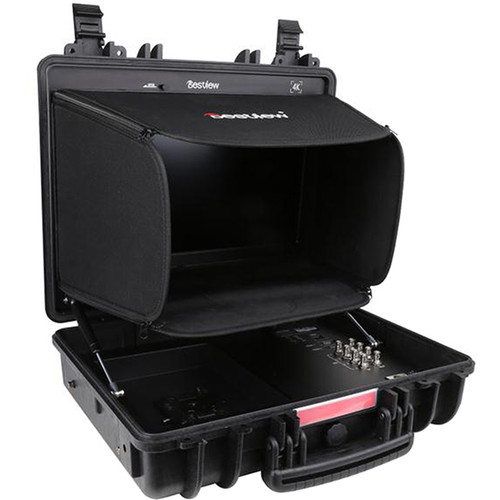

- Suns-hood
- HDMI cables
- Wipe cloth
- Warranty card
- SDI cable

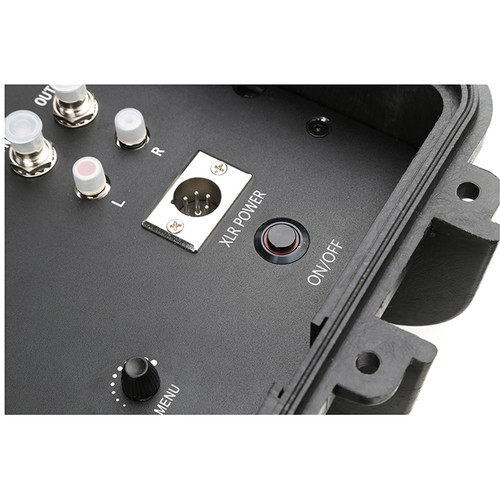

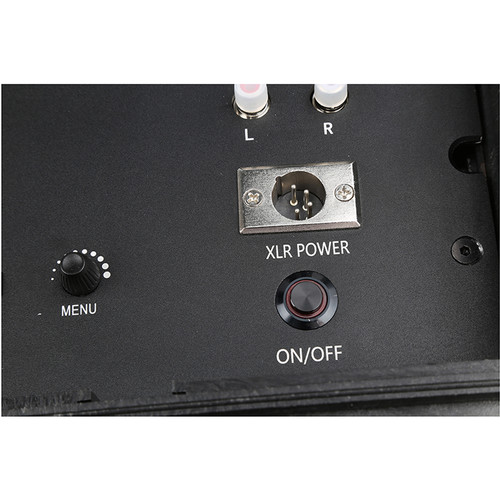

- XLR power adapter (different country with different specifications)
- Standard Operating Instructions (available in English)
